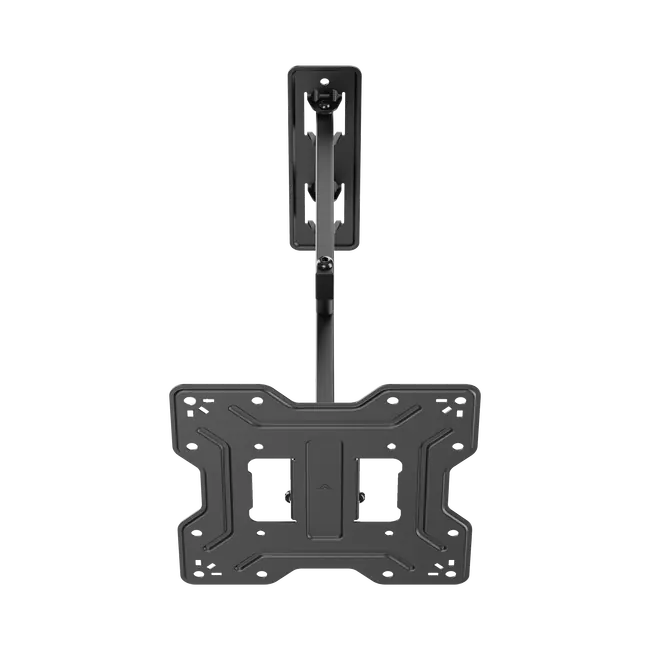

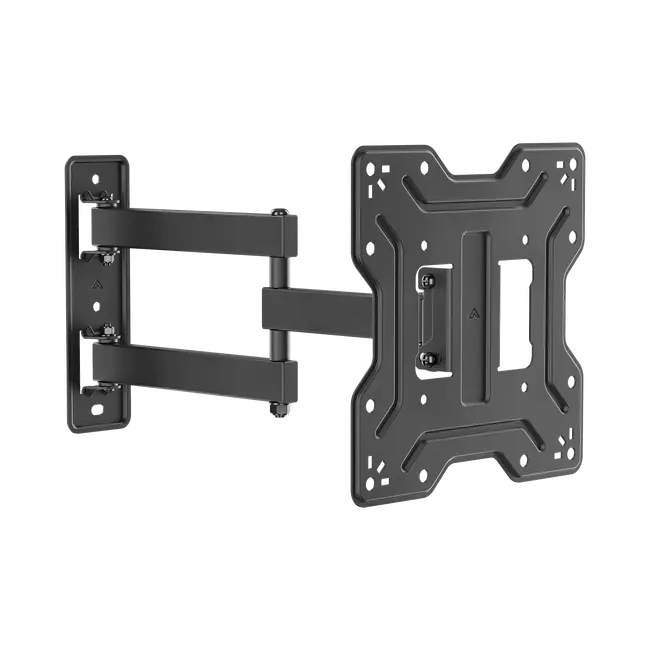

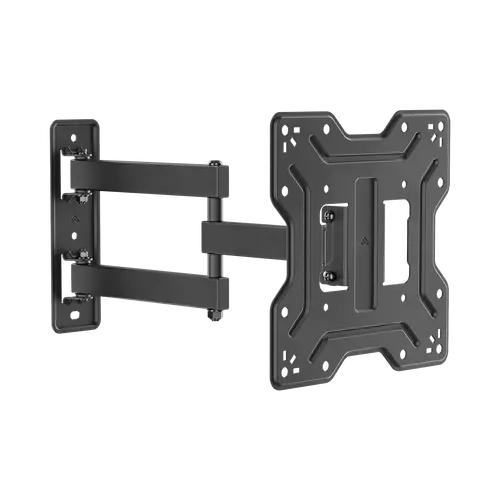

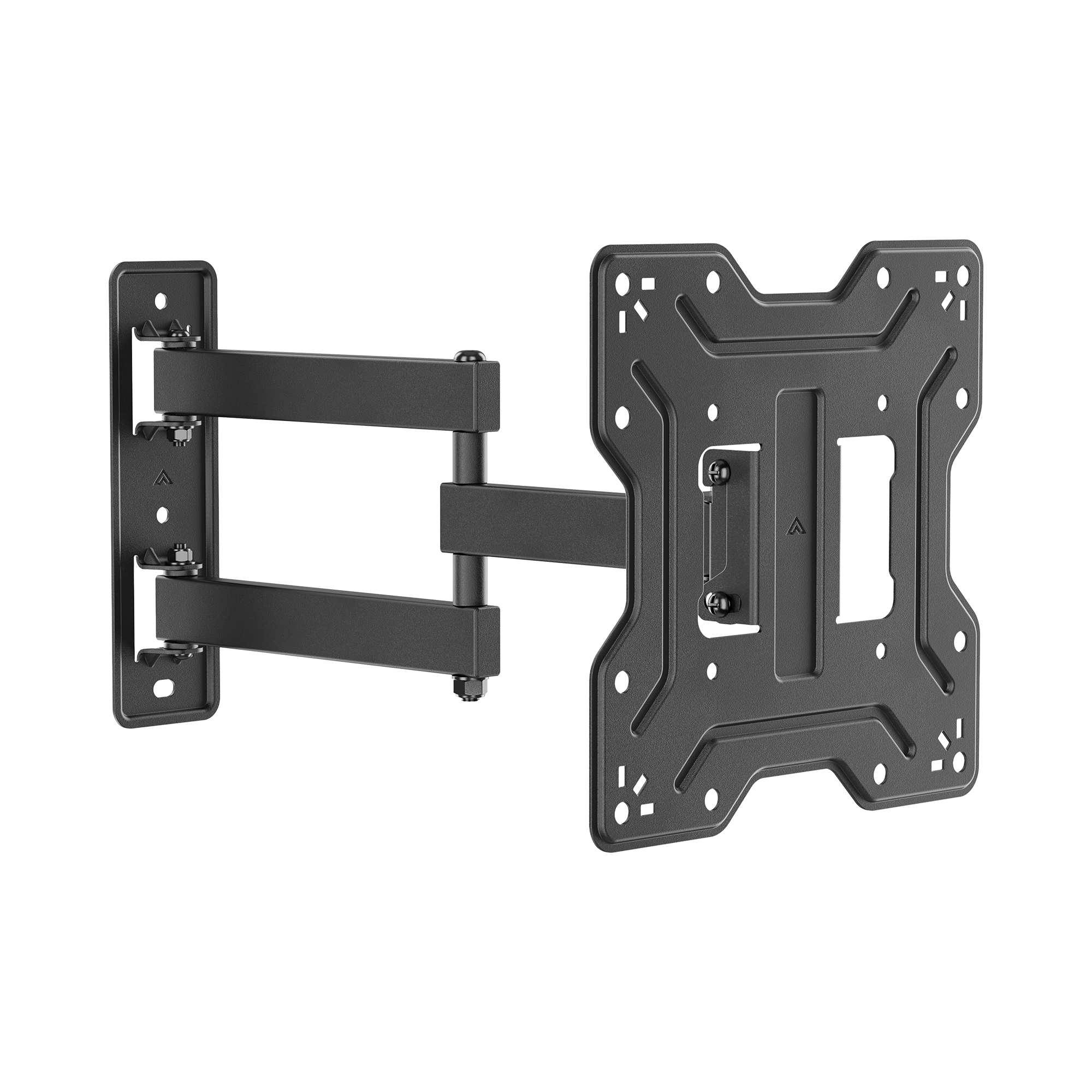

SBOX LCD-423 Full-Motion Wall TV Mount - 23-43" / 30 kg / 200x200
Specifications
General attributes
Stand type
Fixed
Minimum VESA
100x100
Maximum VESA
200x200
Load capacity (kg)
30
Minimum screen size
23 / 58 cm
Maximum screen size
43 / 109 cm

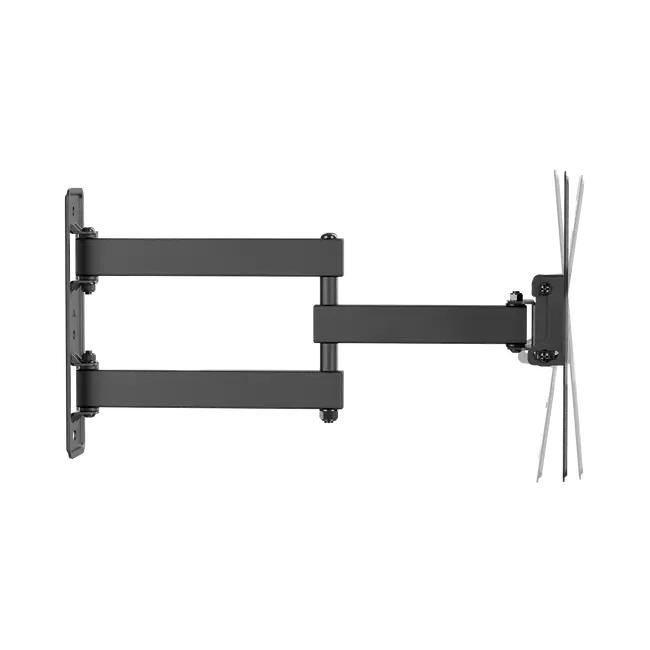

Vertical tilt
+5°~-10°
For curved screens
Yes
Cable guides
Yes
Color
Black with fine texture
Warranty
60-month warranty

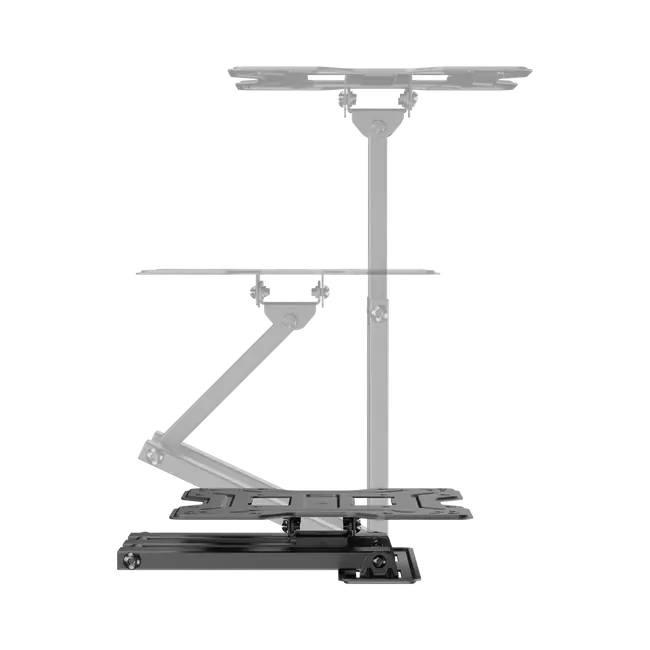

Horizontal swivel
+90°~-90°
Detachable VESA plate
Yes
Installation
Wall
Material
Steel

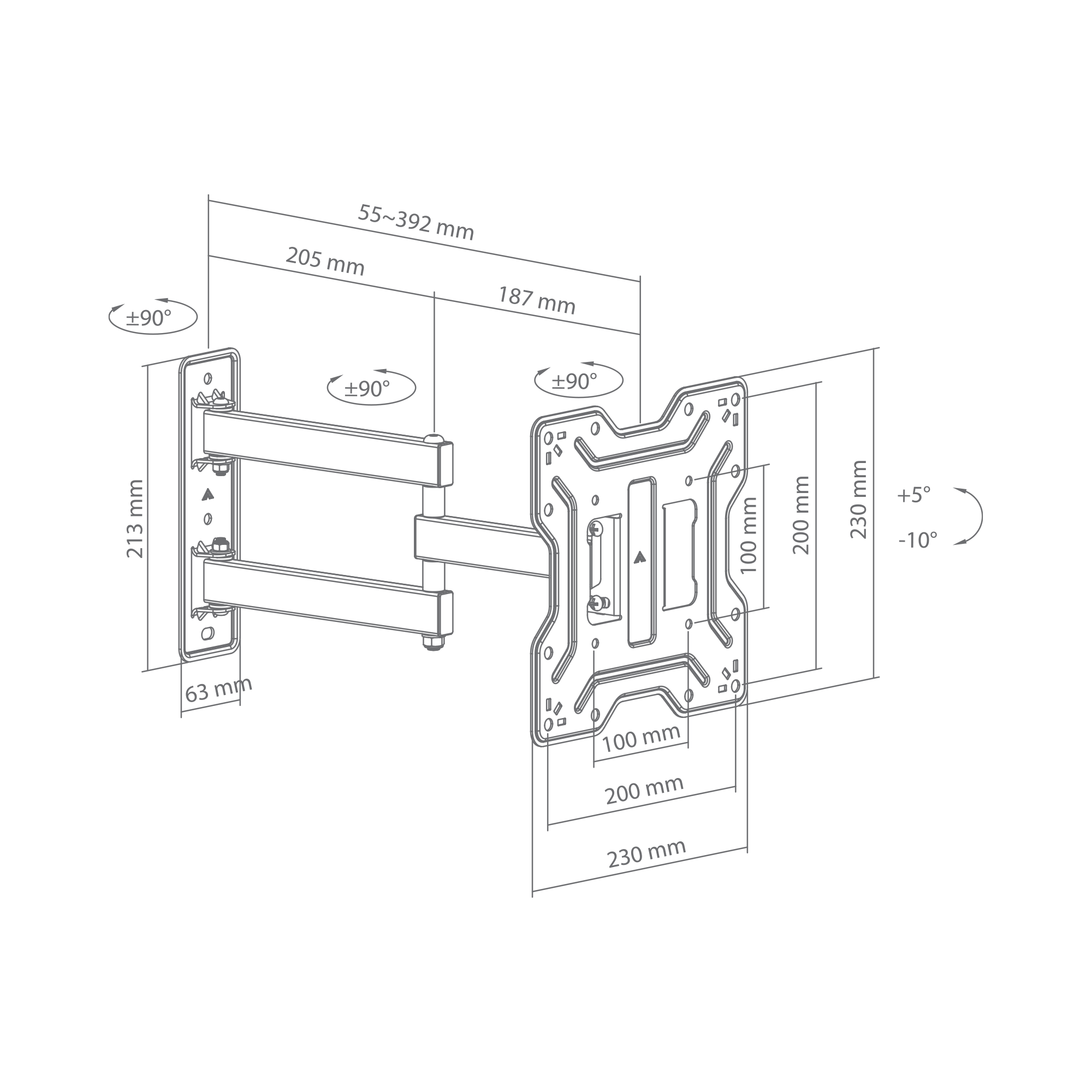

Dimensions (mm)
392x230x230
Weight (g)
1557
Finishing
Powder coating
Notice
When mounting, pay attention to VESA and the screw type used by individual TV manufacturers!
Minimum distance from wall (mm)
55
Maximum distance from wall (mm)
392
Min Charging Power (W)
0.00
Primary Battery Voltage (V)
0.00
Secondary Battery Voltage (V)
0.00
Logistics data
Transport packaging
Shipping packaging - Quantity
8
Shipping packaging - Unit
com
Shipping packaging - Weight
13.8
Shipping packaging - Length
48.5
Shipping packaging - Width
29.6
Shipping packaging - Height
26
Commercial packaging
Commercial packaging - Quantity
1
Commercial packaging - Unit
com
Commercial packaging - Weight
1.56
Commercial packaging - Length
23.5
Commercial packaging - Width
6
Commercial packaging - Height
28.1
